727 46 47 48RE HEAVY DUTY BELLEVILLE SPRING KIT

Product Description

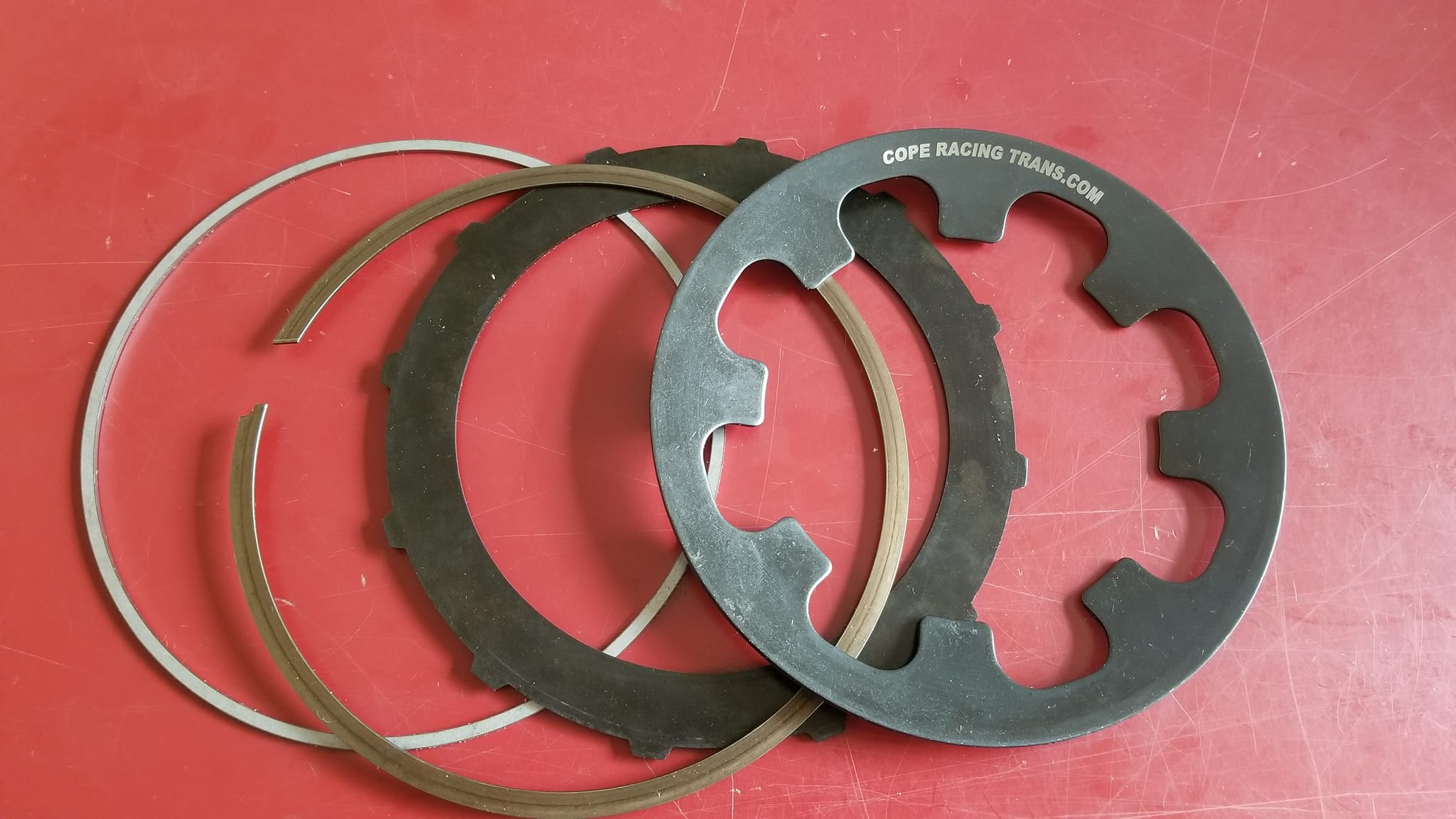

THIS KIT INCLUDES:

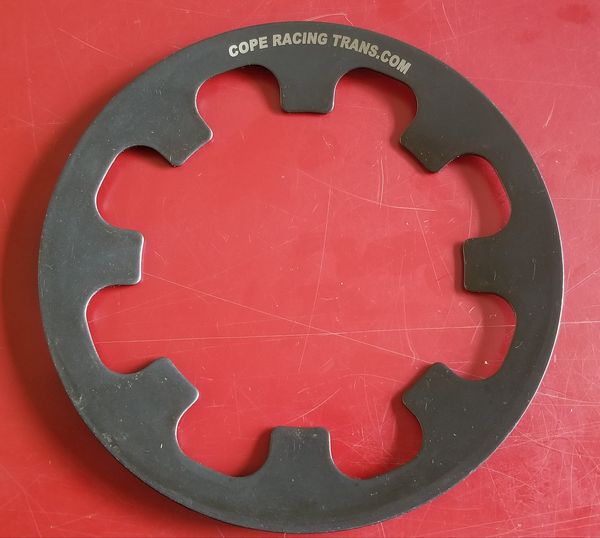

1 NEW HD BELLEVILLE SPRING
1 STEEL SPACER
1 .060″ FLAT SNAP RING
1 .059″ KOLENE STEEL PLATE

THIS HD BELLEVILLE SPRING KIT IS DESIGNED TO BE USED WITH THE APPLY PISTON THAT MEASURES .780″

REMOVER THE ORIGINAL BELLEVILLE SPRING AND PLASITC SPACER. INSTALL NEW BELLEVILLE SPRING AND
STEEL SPACER, REUSE YOUR ORIGINAL WAVE SNAP RING.
INSTALL YOUR PRESSURE PLATE, CLUTCHES & STEEL, TOP PRESSURE PLATE, USE THE SUPPLIED .060″
FLAT SNAP RING AND CHECK YOUR CLEARANCE. (.020 – -036)
IF YOUR CLEARANCE IS TOO TIGHT, USED SUPPLIED .059″ KOLENE STEEL PLATE.
IF YOUR CLEARANCE IS TOO LOOSE USE A .075 SNAP RING (NOT SUPPLIED)
